Virtual Bridge designs domestic plumbing and drainage systems to BS EN 806 (water supply installations in buildings) and BS EN 12056 (gravity drainage systems inside buildings) as the primary technical references, overlaid with the specific requirements of each GCC territory. In Saudi Arabia, this includes the Saudi Building Code plumbing provisions. In the UAE, we work to UAE plumbing code requirements and DEWA and Abu Dhabi Distribution Company utility connection standards. In Kuwait and Qatar, applicable Ministry of Public Works and municipal authority requirements are followed. All material specifications reference WRAS approval and NSF/ANSI 61 for potable water contact materials.

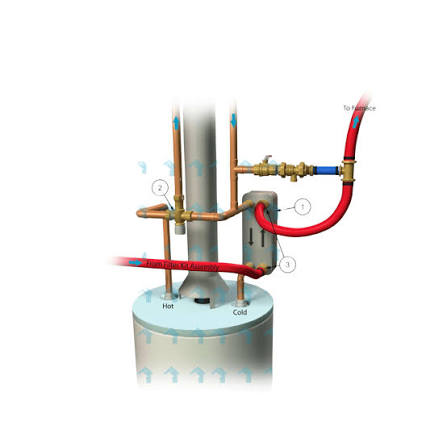

In the GCC, hot water systems and cooling tower water systems face elevated Legionella risk for two reasons specific to the regional climate. First, the high ambient temperatures that can cause hot water in poorly designed circulation systems to fall into the Legionella growth temperature range (25–45°C) even in insulated pipe runs. Second, the extensive use of cooling towers in large chilled water systems creates an aerosol risk that requires careful water treatment and system design. Virtual Bridge addresses this through correct hot water storage temperatures (minimum 60°C), properly designed secondary circulation loops with no dead legs, insulation to prevent cold water warming and hot water cooling, and Legionella risk assessment as part of the system design process — not as an afterthought.

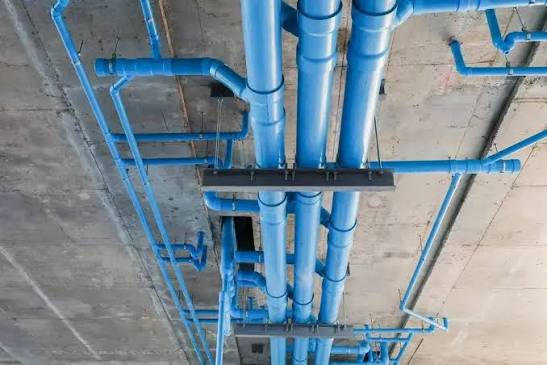

Material selection is project-specific, based on the system function, operating temperature and pressure, water quality, and the project specification. For cold water supply, PPR (polypropylene random copolymer) is widely used for its corrosion resistance and suitability with desalinated water. For hot water distribution, PPR (rated for hot water service) or copper is typically specified. For drainage, UPVC is standard for above-ground systems, with cast iron used where noise attenuation is required (hotels, residential towers). HDPE is used for below-ground drainage and large-bore underground cold water mains. Galvanised steel is used for specific applications where required by authority specifications. All materials are WRAS-approved or NSF/ANSI 61-certified where they are in contact with potable water.

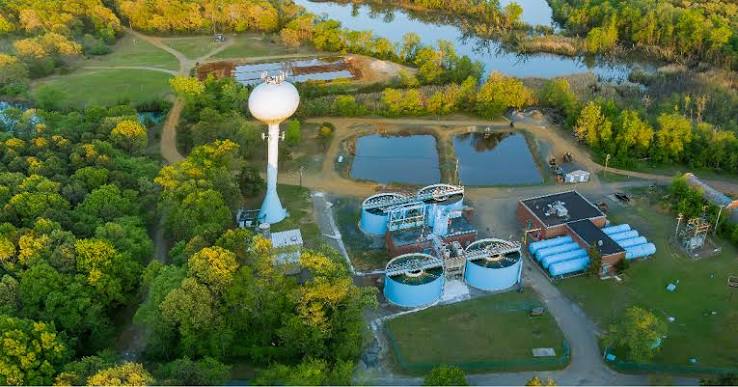

Yes. Greywater collection, treatment (filtration and UV disinfection), storage, and non-potable distribution for toilet flushing and irrigation is within Virtual Bridge's plumbing scope. Rainwater harvesting — roof collection, downpipe diversion, underground storage, and pumped distribution — is available as a standalone system or integrated with greywater recycling for combined non-potable water reuse. Both systems contribute to water efficiency credits for LEED, Estidama, and Saudi Vision 2030 green building submissions. Virtual Bridge provides the water balance calculations, system documentation, and performance data required for green building credit submissions.

Virtual Bridge carries out hydraulic pressure testing on all water supply pipework — typically at 1.5 times the working pressure for a minimum of one hour, with visual inspection for leaks. Drainage systems are tested by water test (filling the stack and branches to check for leaks) or air test depending on access conditions. After pressure testing, all water supply systems are flushed to remove debris and then disinfected to BS 8558 (or equivalent) using chlorination — with contact time and final free chlorine residual verified before flushing out. Water samples are taken for bacteriological analysis by an accredited laboratory before the system is put into service. All test results — pressure test certificates, disinfection records, and water analysis reports — are issued as part of the handover documentation package.

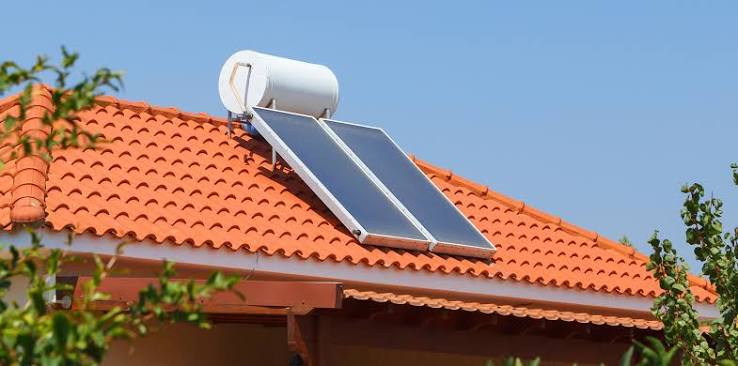

Yes. Solar thermal hot water pre-heating is a particularly effective energy-saving measure in the GCC, where year-round high solar irradiance makes flat plate and evacuated tube collector systems capable of providing 60–80% of annual hot water energy demand — dramatically reducing the energy cost of conventional hot water heating. Virtual Bridge designs and installs solar thermal systems as part of the plumbing scope, integrating them with conventional backup heating (electric immersion, gas-fired calorifier, or heat exchanger from HVAC system) for reliable year-round hot water supply. Where the project also includes a solar PV scope, Virtual Bridge coordinates both solar thermal and PV systems under A&S Mechanical's renewable energy capability.
