A duty pump is the primary pump that operates under normal conditions to meet the system demand. A standby pump is a second, identical pump that starts automatically if the duty pump fails — ensuring continuous operation of critical systems. For most building water supply and drainage applications, a duty/standby (D/S) configuration is standard, with automatic alternation between the two pumps to equalise running hours. For fire pump rooms, NFPA 20 requires both an electric motor-driven main pump and a diesel engine-driven standby pump, providing fire suppression capability even on complete loss of electrical supply. For critical applications such as hospitals and data centres, N+1 or 2N redundancy configurations provide additional resilience.

NPSH — Net Positive Suction Head — is the minimum pressure required at the pump suction inlet to prevent cavitation (vapour bubble formation and collapse inside the pump impeller). Every pump has a required NPSH value (NPSHR) that must be lower than the available NPSH (NPSHA) of the installation — the actual pressure at the suction inlet accounting for suction lift, pipe friction losses, and fluid vapour pressure. If NPSHA is insufficient, the pump will cavitate — causing noise, vibration, impeller damage, and reduced performance. In GCC conditions, where desalinated water supply is often at elevated temperatures and stored in roof tanks with limited static head, NPSH analysis is an essential part of every pump selection exercise. Virtual Bridge performs NPSH calculations for every pump station it designs.

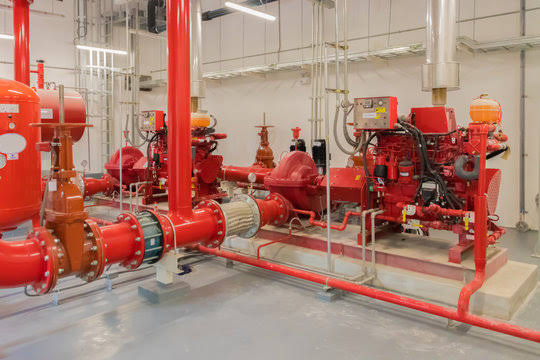

NFPA 20 — Standard for the Installation of Stationary Pumps for Fire Protection — governs fire pump installations and is adopted across GCC territories as the primary reference standard. Key requirements include: the fire pump must be UL listed or FM approved; an electric motor-driven main pump and a diesel engine-driven standby pump are required for most applications; a jockey (pressure maintenance) pump is required to maintain system pressure without cycling the main pump; the fire pump must be capable of delivering its rated flow at minimum 65% of rated pressure, 100% of rated flow at rated pressure, and 150% of rated flow at minimum 65% of rated pressure; the diesel engine must start automatically on mains power failure; and the pump must be tested at installation by operating through the full performance curve. Virtual Bridge designs, installs, and tests all fire pump rooms to NFPA 20 requirements and manages Civil Defence submission and inspection.

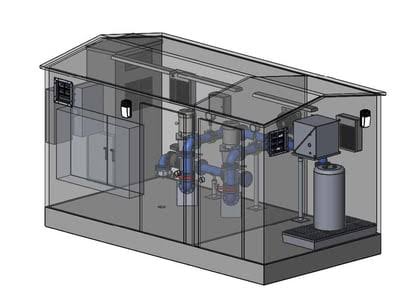

Variable speed drives allow pump motor speed to be varied in response to system demand — rather than running at fixed speed with flow controlled by a throttle valve or bypass. The energy saving from VSD control is significant: pump power consumption varies approximately with the cube of speed, so reducing pump speed by 20% reduces power consumption by approximately 50%. For water supply booster stations that operate continuously at varying demand — with peak demand during daytime occupancy and minimum demand overnight — VSD control provides substantial energy savings over the building's lifetime. VSD booster sets also maintain constant pressure more accurately than fixed-speed pump sets, improving water supply consistency across the building. Virtual Bridge specifies VSD booster sets as standard for domestic water supply applications and for all HVAC pump installations where variable flow is required.

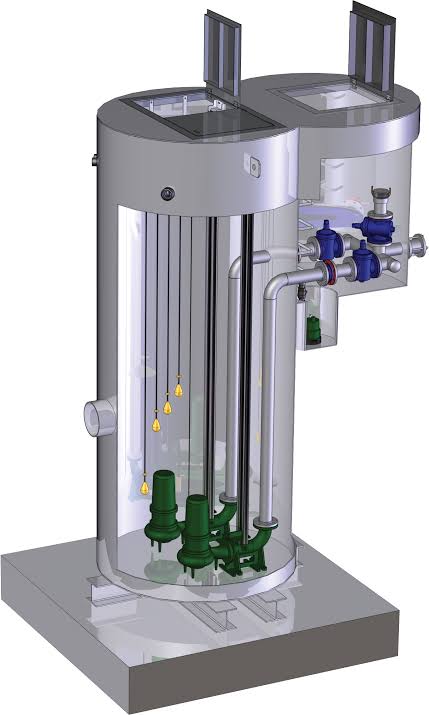

Virtual Bridge delivers both — from small single-pump sump pits serving individual basement areas to larger wet well sewage lifting stations serving building complexes and infrastructure drainage networks. For larger wet well stations, the scope includes wet well sizing (based on pump flow rate and acceptable start frequency), guide rail and auto-coupling installation for submersible pump drop-in and pull-out, control panel with level sensors, duty/standby alternation, high-level alarm, and dry run protection. The rising main from the pump station to the gravity discharge point is included in scope, along with non-return valves and isolating valves on the discharge. For stations requiring authority approval (where they discharge to municipal sewers), Virtual Bridge manages the utility submission and approval process.

Virtual Bridge carries out the following tests before pump station handover: system flushing to remove construction debris from pipework; pump performance testing — measuring actual flow (by clamp-on ultrasonic flowmeter or inline meter) and pressure (by calibrated gauge) at the design operating point and comparing against the pump curve; duty/standby changeover test — confirming automatic switchover on duty pump trip; alarm testing — confirming all alarms (high level, low level, pump fault, power failure) activate and display correctly; VSD control testing — confirming constant pressure delivery across the flow range from minimum to maximum demand; and for fire pump rooms, the full NFPA 20 performance test across the pump curve from shutoff to 150% rated flow. Performance test certificates are issued for all tests and included in the handover documentation package alongside as-built drawings and O&M manuals.
